Introduction of HPMC

Introduction of HPMC

Introduction of HPMC
Table of Content [Hide]

    1. What is HPMC?


    (1)HPMC stands for Hydroxypropyl Methyl Cellulose, Hypromellose. It is a non-ionic water-soluble methyl cellulose ether polymer that is derived from natural polymer cellulose. HPMC is an odorless, non-toxic,tasteless white powder that can be dissolved in hot and cold water to form a transparent viscous solution.HPMC has the properties of thickening, binding, dispersing, emulsifying, film-forming, suspending, adsorbing, gelling, surface active, water retention and protecting colloid that is commonly used in a variety of industries, including construction, pharmaceuticals, cosmetics, and food.

    HPMC CAS: 9004 65 3

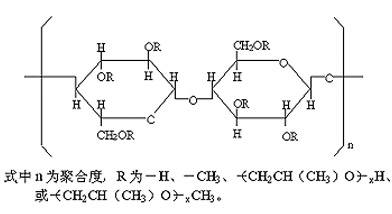

    HPMC Structural:


    HS CODE:39123900


    (2)HPMC - Physical&chemical Properties

    Molecular Formula

    〔C6H7O2(OH)3-m-n(OCH3)m(OCH2CH(OH)CH3)n〕x

    Molar Mass

    59.08708

    Density

    1.39

    EINECS

    618-389-6

    Melting Point

    225-230 °C

    Boling Point

    1101.5°C at 760 mmHg

    Flash Point

    619.9°C

    Water Solubility

    Soluble

    Solubility

    H2O: 50mg/mL, clear to very faintly turbid, faintly yellow

    Vapor Presure

    0mmHg at 25°C

    Appearance

    White-like powder

    Color

    White to cream

    Odor

    Odorless

    Merck

    14,4842

    Storage Condition

    room temperature

    Stability

    Stable. Solid is combustible, incompatible with strong oxidizing agents.

    MDL

    MFCD00131360






    (3)HPMC Features :


    ①. Solubility: It is almost insoluble in absolute ethanol, ether, and acetone, but dissolves into a clear or slightly turbid colloidal solution in cold water. Soluble in some organic solvents, also soluble in water-organic solvent mixed solvents.

    ②. Salt resistance: in the presence of metal salts or organic electrolytes, it is relatively stable in aqueous solution.

    ③. Surface activity: it can be used as colloidal protective agent, emulsifier and dispersant.PH value is relatively stable in the range of 3.0~11.0. The viscosity of aqueous solution is hardly affected by acid or alkali.





    2. What is HPMC used for?


    HPMC is a versatile polymer with a wide range of applications. Its unique properties make it a valuable ingredient in various industries, contributing to the development of innovative products that meet the needs of consumers.


    (1) HPMC for construction: One of the main applications of HPMC is in the construction industry. HPMC is used as a thickener, binder, and water retention agent in cement-based materials, mortar, and tile adhesives. It helps to improve workability, adhesion, and durability of these materials. HPMC also enhances the cohesiveness of dry mortars and increases the water retention properties of the materials, which helps to prevent cracking and improve the performance of the final product.



    (2) HPMC in pharmaceutical: HPMC is widely used in the pharmaceutical industry as a coating agent for tablets and capsules. It helps to protect the active ingredients from moisture and light, as well as improve their dissolution rate. HPMC is also used as a binder in tablet formulations, which helps to ensure that the tablet remains intact until it reaches the intended site of action. HPMC is also used as a suspending agent in liquid dosage forms and as a lubricant in capsules and tablets.



    (3) HPMC for detergent: HPMC is used in personal care products, such as shampoos, lotions, and creams, as a thickener and emulsifier to improve their texture and stability. HPMC helps to improve the viscosity of the products, which makes them easier to apply and provides a better sensory experience for the user. HPMC is also used as a film-forming agent in hair styling products and as a stabilizer in skin creams and lotions.



    (4) Hydroxypropyl methyl cellulose in food: HPMC is used as a food additive to improve the texture and consistency of products such as sauces, dressings, and baked goods. It is also used as a fat replacer in low-fat and reduced-calorie foods. HPMC is a safe and non-toxic additive that is approved by regulatory authorities around the world. It helps to improve the mouthfeel of the products and provides a better sensory experience for the consumer.



    (5) Paints and coatings: HPMC is used as a rheology modifier in paints and coatings to control the viscosity and improve their performance. It helps to improve the flow and leveling of the products and provides better film-forming properties. HPMC is also used as a thickener and stabilizer in water-based paints, which helps to improve their shelf life and prevent the settling of pigments.



    (6) Oil and gas drilling: HPMC is used as a viscosifier and fluid loss control agent in oil and gas drilling fluids. It helps to improve the rheological properties of the drilling fluids, which enables better drilling performance and wellbore stability. HPMC also helps to prevent fluid loss in porous formations, which helps to reduce the risk of formation damage and wellbore instability.



    3.HPMC manufactured by Kima Chemical :


    Hydroxypropyl Methylcellulose Specification

    HPMC 60E

    ( 2910 )

    HPMC 65F

     ( 2906 )

    HPMC 75K

    ( 2208 )

    Gel temperature (℃)

    58-64

    62-68

    70-90

    Methoxy (WT%)

    28.0-30.0

    27.0-30.0

    19.0-24.0

    Hydroxypropoxy (WT%)

    7.0-12.0

    4.0-7.5

    4.0-12.0

    Viscosity(cps, 2% Solution)

    3,5,6,15,50,100,400,4000,40000,60000,100000,150000,200000



    (1)Construction Grade Hydroxypropyl Methylcellulose (HPMC):


    Construction Grade HPMC

    Viscosity (NDJ, mPa.s, 2%)

    Viscosity(Brookfield,mPa.s,2%)

    HPMC MP400

    320-480

    320-480

    HPMC MP60M

    48000-72000

    24000-36000

    HPMC MP100M

    80000-120000

    40000-55000

    HPMC MP150M

    120000-180000

    55000-65000

    HPMC MP200M

    180000-240000

    70000-80000



    (2)Detergent Grade Hydroxypropyl Methylcellulose (HPMC):

    Detergent Grade HPMC

    Viscosity

    (NDJ, mPa.s, 2%)

    Viscosity

    (Brookfield, mPa.s, 2%)

    HPMC MP100MS

    80000-120000

    40000-55000

    HPMC MP150MS

    120000-180000

    55000-65000

    HPMC MP200MS

    180000-240000

    70000-80000



    (3)Pharmaceutical Grade Hydroxypropyl Methylcellulose (HPMC):

    Hypromellose Grade

    Viscosity(cps)

    Remark

    HPMC E5

    4.0-6.0



    Hypromellose 2910

    HPMC E6

    4.8-7.2

    HPMC E15

    12.0-18.0

    HPMC E4M

    3200-4800

    HPMC F50

    40-60

    Hypromellose 2906

    HPMC K100

    80-120



    Hypromellose 2208

    HPMC K4M

    3200-4800

    HPMC K100M

    80000-120000



    (4)Food Grade Hydroxypropyl Methylcellulose (HPMC):

    Hypromellose Grade

    Viscosity(cps)

    Remark

    HPMC E5 FG

    4.0-6.0



    Hypromellose 2910

    HPMC E6 FG

    4.8-7.2

    HPMC E15 FG

    12.0-18.0

    HPMC E4M FG

    3200-4800

    HPMC F50 FG

    40-60

    Hypromellose 2906

    HPMC K100 FG

    80-120



    Hypromellose 2208

    HPMC K4M FG

    3200-4800

    HPMC K100M FG

    80000-120000





    Kima Chemical is a leading HPMC manufacturer. The company is based in China and has been in the cellulose ether industry for over 10 years. Kima Chemical is committed to providing its customers with high-quality products and excellent customer service. The company's HPMC products are exported to over 20 countries and regions around the world, and its reputation as a reliable and trustworthy manufacturer of cellulose ethers has made it a preferred supplier for many customers in the industry.
